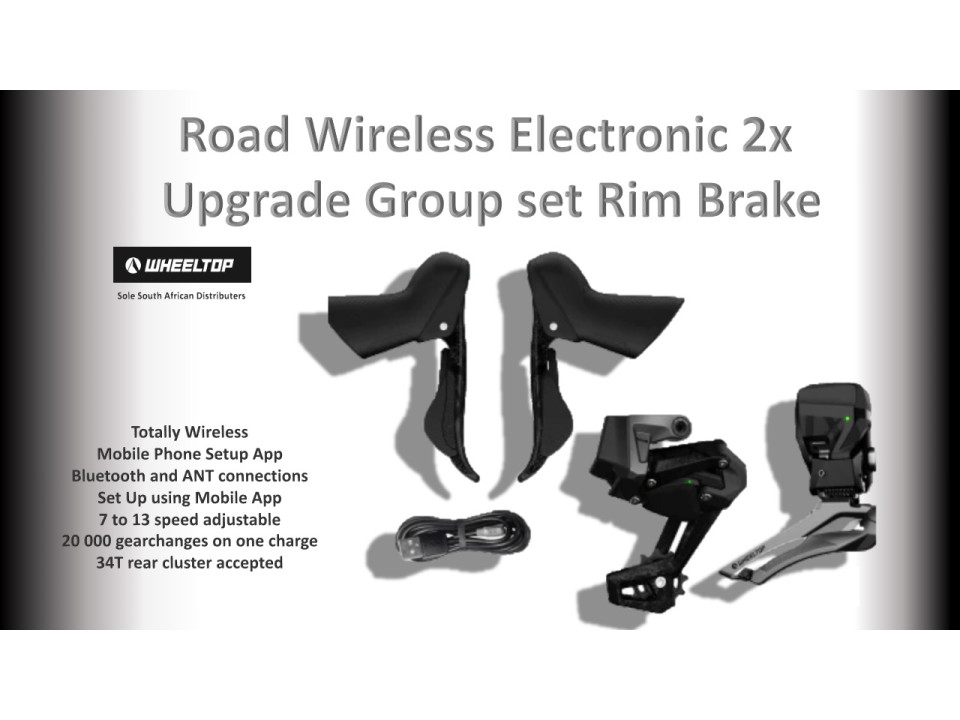

WHEELTOP EDS Electronic Road Rim Brake 2x12 A6000 (Upgrade set)

TX-RA6000-GS Road Cable Brake Group Set

Compared to a mechanical deraileur, the Wheeltop Electronic Deraileur allows you to switch speeds easily. Instead of changing one speed at a time, you can switch directly from 3-speed to 14-speed by continuously pressing the button, improving efficiency in the switching process.

Bluetooth and ANT (Adaptive Network Topology) ensure a stable wireless connection between the controller and derailleurs, offering a responsive, smooth, and precise gear shift. Wireless design makes installation easier and offers an untethered ride.

Featured with carbon fibre, the EDS TX is lightweight, extremely durable, sleek, and proficient in shock absorption, providing riders with a nimble and comfortable biking experience.

Long Battery Life, the battery supports approximately 20,000 operations and charges of 800 times.

Fine-tune and shift gears, calibrate, upgrade firmware, record ride data check battery level, and switch modes(leisure or race) in our app.

The lP67 rating enables confident cycling in rainy weather, crossing streams, and cleaning the device, with water immersion resistance of up to 1m for 30 minutes, ensuring worry-free rides.

Specifications

Brake Lever Length 140mm Adjustable Range 8mm

Battery Type CR2032

Speed Compatibility L 1/2s    R 3-14s

Weight L 209g    R 213g

Rear Derailleur (RD) Speed Compatibility 3-14s

Low Cassette 10 -11T

Maximum Cassette 30-36T

Total Range of Gear Change 36T

Weight 320g

Battery Capacity 800mAh

Front Derailleur (FD) Speed Compatibility 1/2s

Chainring Compatibility 53T

Total Range of Gear Change 16T

Weight 187g-

Angle of Chain 61°-66°

Installation Type Band-On/Braze-On

Battery Capacity 500mAh

Cable operated rim brake system, compatible to your existing brakes

Total Weight – 932g

INSTALLATION - A6000 Installation Video

CRASH TEST - Crash Test Video

BATTERY REPLACEMENT- Battery Swop

GEAR CHANGING ACTION - Gear Changing Action
